Chicago Wine Cellars Benefit Well From Quality Wine Cellar Cooling Units

Wine cellar refrigeration systems in Chicago are an essential aspect of wine storage. Wine cellar cooling units help make sure that the temperature and humidity in your residential wine cellar in Chicago are kept at the ideal ranges. Wines cannot mature well if they aren’t kept in the ideal temperature and humidity ranges.

Residential Wine Cellar Project in Long Grove, Chicago, Illinois

A beautifully designed wine cellar in Chicago by Baroque Designs LCC is an example of a wine storage room that can provide the ideal conditions for wines. This residential wine cellar is built in a home in Long Grove, Chicago, and can accommodate more than 1000 wine bottles.

Wines can be stored in many different ways, but when it comes to huge wine collections, custom wine cellars are the best place to keep them. The huge home wine cellar was built in a renovated billiard table room that is 15 x 17 feet.

Custom Wine Cellar Chicago – Unique Design

The residential wine cellar in Chicago was uniquely designed and built by Baroque Designs LCC. The wine cellar had a classic feel with a medieval design. Stone work was done in the wine storage room up to the 10’ ceiling. The wine racks were handmade from reclaimed barn wood, which was obtained from their local supplier. Four niches that were 2’ high and 6” deep in the corners of the wine racks were included, to showcase magnums. The wine racking was made to accommodate individual storage and a diamond bin was included for bulk storage.

Wine cellar doors are also an important part of custom wine cellars, because how they are built may affect the temperature and humidity conditions inside the wine storage rooms. A purpose built wine cellar door imported from Europe was installed in this beautiful home wine cellar in Chicago, Illinois.

A classic design wine tasting room is another beautiful feature of this Chicago residential wine cellar. The tasting room has a table and a few chairs. A reclaimed wine barrel head from Sonoma Valley in California was used as décor in this tasting room. The barrel head had the client’s name customized on it.

Wine Cellar Refrigeration System Chicago – Effectively Installed

Every home wine cellar in Chicago needs a wine cellar refrigeration unit to help make sure that the temperature and humidity are kept in the ideal levels. Wines will get damage if there are constant fluctuations in these levels.

For this wine cellar project in Long Grove, Chicago, Illinois, US Cellar Systems provided an effective wine cellar refrigeration unit and had a licensed HVAC technician install the unit. The unit was a 300 cubic feet capacity Ductless Split Type Cooling unit.

Custom Wine Cellars Chicago Illinois White Under Staircase Project

Custom Wine Cellars Chicago Illinois White Under Staircase Project – Processed Video Transcription

Under the Stairs Custom Wine Cellars Chicago Illinois

The White custom wine cellars Chicago Illinois presents several situations.  It was a cellar that is created under a stairway so the ceiling is slanted.  The room is also very odd shaped, as you can see.  So we needed to design something that worked well.

Custom Wine Cellars Chicago Illinois - Overhead Plan View

Custom Wine Cellars Chicago Illinois – Overhead Plan View

We also wanted to have our cooling unit in this area and blowing down from the ceiling.  We are going to take a look at each elevation.

Elevation A is right when you come in the door; elevation B, the left wall; C, the back wall; D is the grill cover and box; and E the right wall.  We used a lot of horizontal wooden wine racks in this design.

Elevation A is our first horizontal rack.  It is 13 1/2 inches deep which means that it will hold three bottles deep in the horizontal rack from floor to ceiling.

Elevation B - Custom Wine Cellars Chicago Illinois White's

Elevation B – Custom Wine Cellars Chicago Illinois White’s

We move on to elevation B.  We have individual bottles with a high reveal display row, we have waterfall wooden wine racks down with the slant of the ceiling and we included some molding along the top edge.

Here you can see where the grill cover and box is up above in the center.  You can see that these Mahogany wine racks are 13 1/2 inches deep.  We do have a 1 1/2 inch toe-kick and base molding.

As we go along, elevation C is the very back wall.  It is a horizontal rack that is only six inches deep for a single bottle.

Elevation D is the grill cover and box with the grill going directly down for the cooling unit, which was an RM 2600 split system.  Elevation E is single deep, only six inches deep going down and ‘waterfalling’ with the slanted ceiling again.

Elevation E - Custom Wine Cellars Chicago Illinois White's

Elevation E – Custom Wine Cellars Chicago Illinois White’s

Elevation F is a triangular shaped quarter round.  It is not a rounded piece but a piece with a flat front that segmented the two elevations A and B together.

3D Drawings - Waterfall Design Wooden Wine Racks

3D Drawings – Waterfall Design Wooden Wine Racks

Waterfall Wooden Wine Racks System

Waterfall Wooden Wine Racks System

You can see how this all works out.  This brings the two walls together.  Our horizontal displays are all lattice displays, and I’m going to show you that in the 3D drawings.

Here, you can see that they are lattice.  There’s your grill cover and box with the air blowing down from the ceiling and you can see these in the 3D as well.

Now, I want to show you some photographs.  Here is looking in to the wine room.  We used a Tuscan wine cellar door.  It’s a square door, we used arched glass and in operable hand-forged wrought iron wine cellar door.

You can see the Mahogany wine racks in here.  We used Mahogany, unfinished Mahogany wood.  The grill cover and box are right there blowing down.

Here you can see it a little bit closer.  You can see that we do have the lattice horizontal displays rows, where it is lattice wood rather than solid.  We have the high reveal display row with LED lighting up above.

Tuscan Wrought Iron Wine Cellar Door & Mahogany Wine Racks

Tuscan Wrought Iron Wine Cellar Door & Mahogany Wine Racks

Here you can see the back wall with the horizontal racks displays rows again, another picture of the displays or close up there.  This is the wrought iron wine cellar door, the hand-forged wrought iron, and you can see the full door, from the front to the back of the wine cellar.

Mahogany Wine Racks, Horizontal Display

Mahogany Wine Racks, Horizontal Display

Hope you’ve enjoyed walking through the White custom wine cellars Chicago Illinois.  This was actually put together and constructed by AMM construction.  Thank you so much!

New Custom Wine Cellars Chicago Illinois – Palos Heights – Dave

New Custom Wine Cellars Chicago Illinois – Palos Heights – Dave (A Processed Video Transcription)

Custom Wine Cellars Chicago Illinois



Dave's Custom Wine Cellars Chicago Illinois

Dave’s Custom Wine Cellars Chicago Illinois

You’re looking at a photograph of Dave’s Custom Wine Cellars Chicago Illinois in a darkened room with the lighting turned on.  As you can see in the wine cellar design, there is a wine barrel table top on a peninsula table.  We have a high reveal display row with LED ribbon lighting above and a solid arch with a pop light.  I’d like to take you on a tour of the wine cellar design drawings.

What you’re looking at here is the overhead or plan view of Dave’s Custom Wine Cellars Chicago Illinois.  As you can see each elevation is designated by a letter: elevation A, the front wall, elevation B are the three corner walls, elevation C the left, D the back wall and E the right wall.

There are a total of 1,064 bottles in this wine cellar.  Dave had a little bit of different design to his cellar; he has the bottom racks coming out further than the top custom wine racks with a 3-inch leap.

We will go to first of all elevation A, below the window.  Here we have champagne size of individual bottles on each side of case storage.  We have individual case storage, a solid case storage in between.  There is 1 1/2 inch toe-kick and base molding on the bottom.  The table top is a cooperage wine table top.

Elevation B are the corners.  Again you can see the wider bottom and the narrower top with the three-inch ledge.

Elevation C, this area in the center is where they built columns in between these racks.  We have solid X-cubes on the bottom with an individual row on each side.  The high reveal display row with the light valance to hide this LED ribbon lighting and the individual bottles above.

Custom Wine Racks Chicago Illinois - Dave's Wine Cellar

Custom Wine Racks Chicago Illinois – Dave’s Wine Cellar

Again you can see they’ve one 10-inch racks on the top and 13-inch custom wine racks on the bottom.  All of these custom wine racks Palos Heights Illinois are 92 1/2 inches high with a 2 1/4 inch crown molding going up an inch above the racks.

Elevation D is the back wall.  Here we have case storage on each side.  We have solid X-cubes above, individual bottle storage, glass racks, high reveal display row with light valance for the LED ribbon lighting and behind, which is hard-to-see on this drawing.

What we used is a wine barrel that Dave had himself, a French wine barrel; we’ve incorporated that into the design and behind the wine barrel there is enough room here.  We were able to put case storage back behind as well.

Moving on to elevation E, we have more case storage going from floor to ceiling and a quarter round in the end.  These are solid case storage and solid quarter round.

3D Wine Cellar Design

We’re going to the 3D wine cellar design Chicago Illinois drawing now.  This is the overhead view.  You can see where we did the three-inch leap, where his peninsula table top comes out and the table top right below the window.

This is a view from the front looking back, a view from the back to the window and the four walls and the window and the right wall from the back straight back and here is from the doorway looking in to the left.  Here you can see the case storage behind the wine barrel.

Hope you’ve enjoyed the walkthrough and the tour of Dave’s Wine Cellar Design created by Custom Wine Cellars Chicago Illinois SPecialists.

Custom Wine Cellars Chicago Illinois – Anil Project by Wine Cellar SPecialists

Custom Wine Cellars Chicago Illinois Anil – Processed Video Transcription

Custom Wine Cellars Chicago Illinois Project for the Anils

You are looking at the design for a very interesting custom wine cellars Chicago Illinois.  The cellar is only about 3 1/2′ deep by about 7 3/4′ wide.  The ceiling height is not quite 8 feet.

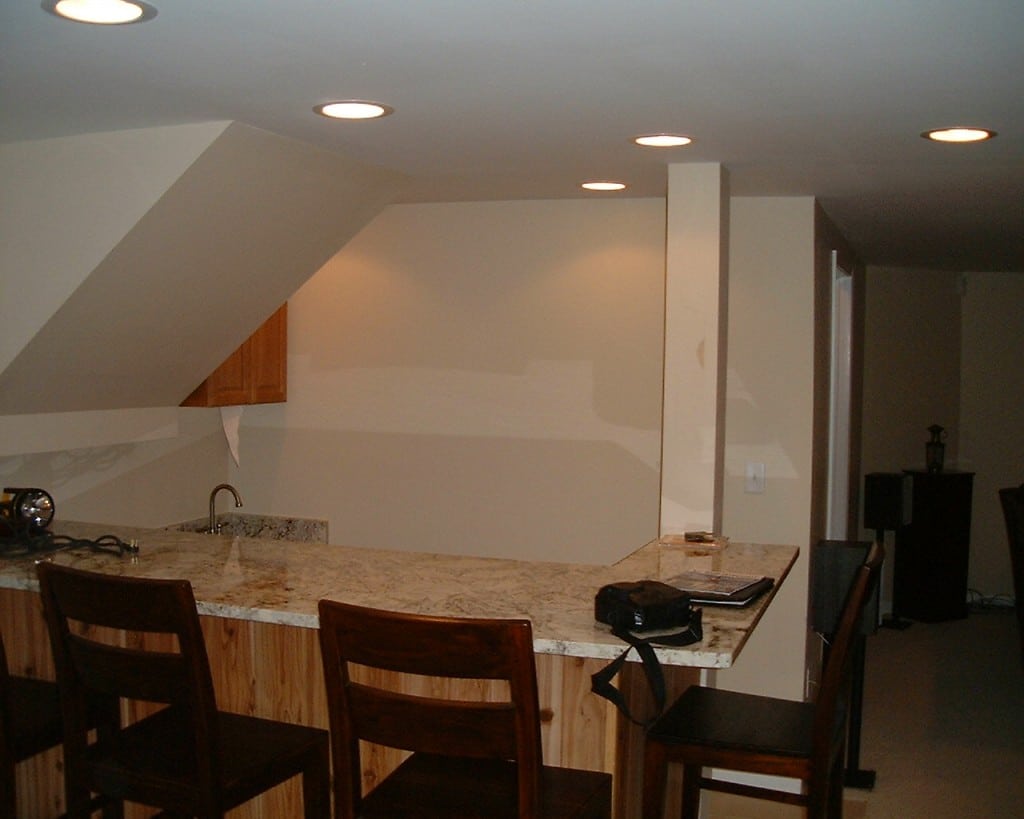

Before Photo - Custom Wine Cellars Chicago Illinois

Before Photo – Custom Wine Cellars Chicago Illinois

The very front is full glass windows and doors.  We also have a window on the right side.  This is no longer a window; this is solid wall.  Each elevation is designated by a letter; elevation B being the left and right walls and elevation C the back wall.

You can see that there is a total of 497 bottles storage possible in this wine cellar.  Elevation B, the left and right walls, begin with individual bottle storage custom wine racks Chicago Illinois below, a high reveal display row with your display bottles at a 15 degree angle, and a light valance above.

The light valance is there to hide any LED ribbon lighting that is installed in the wine cellar to shine down on the display row.  We also have individual 750 bottles above that are configured in a waterfall configuration.

This will be so that the windows in the front can see the labels on the bottle as they go up the racking.  Each of the racks is 13 ½’’ deep.  They have 1 ½ toe kick and base molding at the bottom and a 2 ¾’’ crown molding at the top that is attached to the custom wine racks.  Elevation C is the back wall.

We have lattice case storage down below with full face trim, individual bottle custom wine racks Chicago Illinois, a high reveal display row with light valance, more individual bottles above, a glass rack, and a tabletop; all matching the racking.

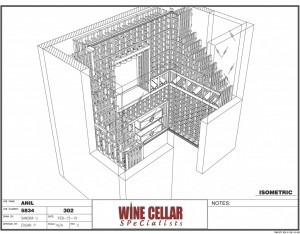

3D Design Custom Wine Racks Chicago Illinois

3D Design Custom Wine Racks Chicago Illinois

This is the overhead 3D view.  You can see the waterfall racking coming down toward the windows.  The front view showing the glass windows and what you can see.  This is the upper view of the right wall and back wall and upper view of the left wall and back wall.

The design is actually completed and here is our picture of the completed room.  You can see the WhisperKOOL wine cellar cooling units Chicago Illinois up in the upper left wall, so WhipserKOOL XLT 3000.

Mr. Anil chose unfinished premium redwood racking for his custom wine racks Chicago Illinois.  This view is from the front and you can see the glass rack, the lattice case storage below, and the high reveal display rows around, as well as the waterfall racking.

Anil Custom Wine Cellars Chicago Illinois

                    Anil Custom Wine Cellars Chicago Illinois

The final view is with the lights out; the ribbon lighting shining down on the display rows and some overhead lighting above.  Hope you enjoyed viewing the Anil wine cellar and seeing the drawings by Wine Cellar Specialists, racking, and cooling that we’ve provided, and the photos of the completed project.
